What is it?
Launched on Kickstarter earlier this year, the nABC is the debut product from Swedish developer Suonobuono. The name is an initialism of Not Another Boring Compressor, a bold mantle that the nABC lives up to thanks to a design ethos distinct from much else on the market right now.
Essentially, this is a hardware analogue compressor albeit with a major emphasis on sidechaining. To facilitate this, alongside its stereo main signal path, the nABC features a variety of both analogue and digital inputs, allowing you to route pretty much anything that takes your fancy into it to provide a sidechain.
Performance and verdict

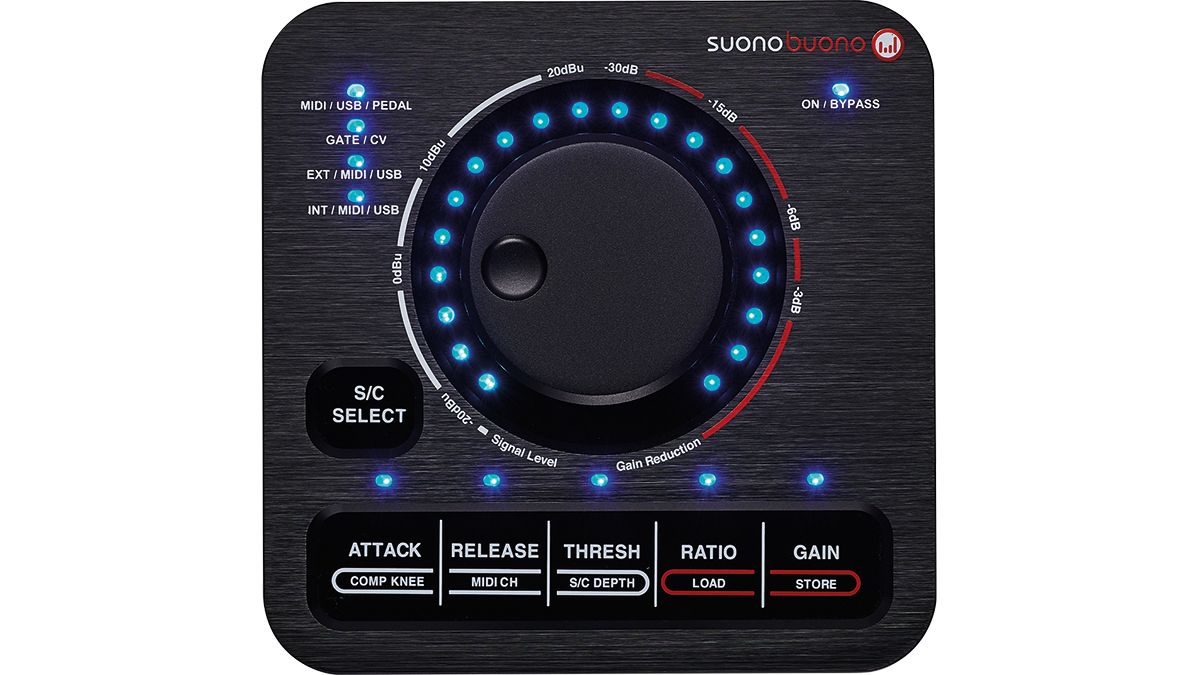

The hardware design itself is compact and neat. The effect is built into a sturdy metal chassis focussed around a central control dial that looks a little like a real world version of one of Waves’ One Knob plugins. That rotary adjusts all effect parameters, used with a row of selector buttons that jump between a fairly standard set of compressor parameters – attack, release, ratio, threshold, output gain, and so on.

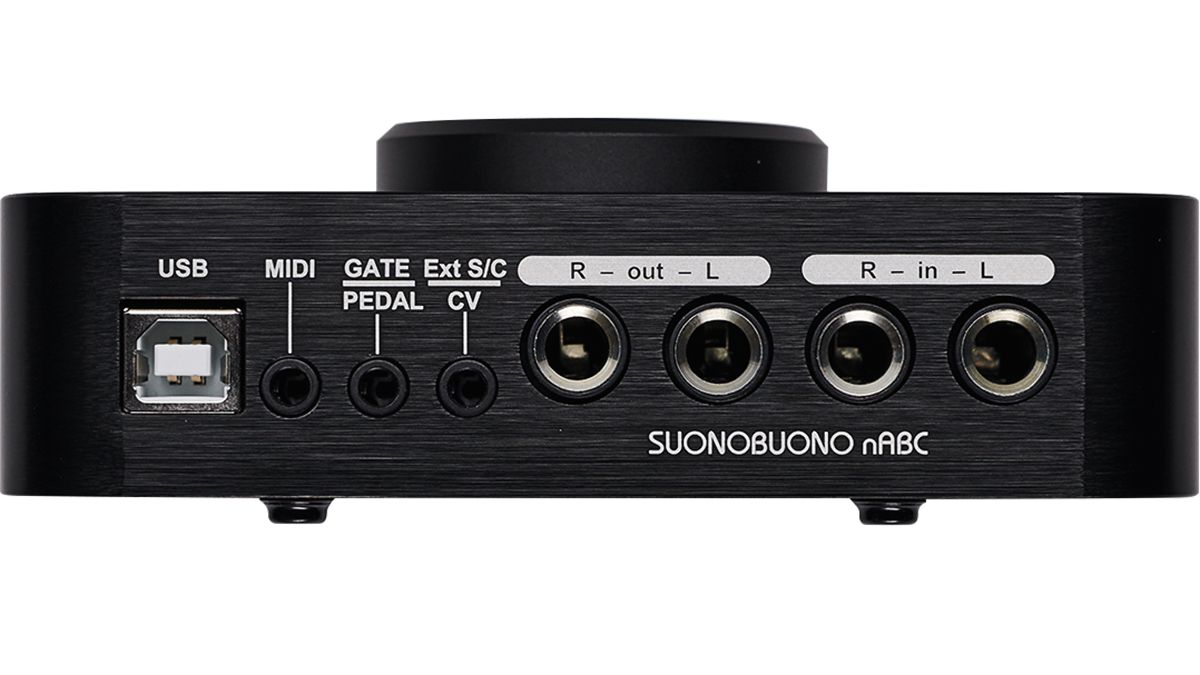

To the left is a button for engaging one of four sidechain modes, dictating which inputs are active at any one time. The sidechain can be triggered by incoming MIDI notes, either using the USB connection (which also provides power) or the included MIDI to 3.5mm jack adapter. These inputs are joined by two more 3.5mm jack inputs, which act as external audio/CV and gate/pedal inputs respectively. Dependent on which mode is currently active, different combinations of inputs will be active at any one time, so it’s possible to trigger sidechaining from multiple sources at once – for example, simultaneously via an incoming audio signal and a MIDI trigger. The nABC can also be set to respond to its own internal audio path for more traditional duties.
• FMR Audio RNC 1773 (opens in new tab)
‘Does the world really need more pumping sidechain compression?’, you may ask. But rest assured, the nABC offers a pleasingly musical take on it. The compressor itself is smooth and musical – the manual describes it as responding more like a synth amp than a classic compressor – and is particularly good at adding a pulsating rhythmic feel to synths and melodic sounds without the results feeling too abrupt or jagged. It’s not necessarily designed for straightforward compression, but does a nice job of meshing synth parts even without engaging a sidechain.
While there are tons of cheaper plugins capable of similar effects – even in most DAWs – the nABC’s distinct character is enough to justify its existence. The unit itself is thoughtfully designed too – clear light guides give realtime feedback for input and compression levels as well as parameter settings, and easy-to-access preset storing and bypass functions add to the usability. The flexible inputs are the highlight here though, meaning this should appeal to producers wanting sequenced analogue compression in their DAW, live performers after a pedal triggered effect and hardware-heads looking for something that will play nice with their analogue gear.
MusicRadar verdict: The nABC offers a fresh, musical take on a ubiquitous compression technique, built into a well-designed hardware package.
- Audio Input: 2 x 1/4″, impedance balanced, >100 kOhm
- Max Audio Input: +19.5dBu
- Audio Output: 2 x ¼”, impedance balanced, 400 Ohm
- Max Audio Output: +19.5dBu
- External Sidechain Audio Input: 1 x 1/8”, max 20dBu, 50kOhm, unbalanced
- External Control Voltage Input: 1 x 1/8”, 0V-10V, unipolar, 50kOhm
- Gate input: 1 x 1/8”, 0V-5V, unipolar (10V is tolerated)
- MIDI input: 1 x 1/8” TRS (DIN to TRS cable is included)
- USB: Type B
- Frequency Response: 20Hz-20kHz, +0.5, -0.5dB
- THD+Noise: Typically <0.06%; @1kHz, 0dBu, 1:1
- Compressor Threshold Range: -20dBu to +20dBu
- Compressor Ratio: 1:1 to Infinity:1
- Make-up gain: 0dB to +20dB
- Maximum gain reduction: >30dB
- Presets: 8, user defined
- Attack time: Adjustable
- Release time: Adjustable
- MIDI control: Sidechain, all audio parameters, preset selection
- MIDI out: Signal level threshold, all audio parameters
- Compression knee: Adjustable, hard or soft
- Power: 5V via USB, typical 500mA
- Dimensions: 125mm x 125mm x 40mm
- Weight: 450gr
