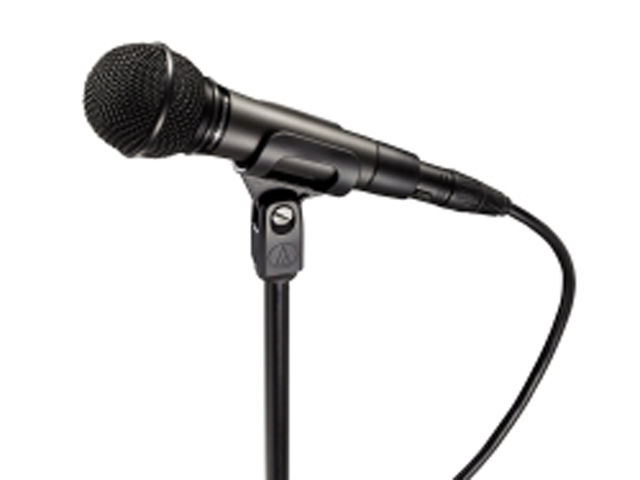

The units' respective polar patterns both reduce the pickup of sounds from the sides and rear, improving isolation of the desired sound source. The ATM510 is designed specifically for close-up vocal use in professional live-sound applications, and the ATM610a is intended for both lead and backup vocal use and is especially effective on loud stages.
Delivering durable performance for professional applications, both microphones feature a rugged, all-metal design and construction for years of trouble-free use; a newly designed superior internal shock mounting, which reduces handling and stage noise; Hi-ENERGY® neodymium magnets for articulate vocal reproduction; a multi-stage grille design, offering excellent protection against plosives and sibilance without compromising high-frequency clarity; Quiet-Flex™ stand clamp for silent, flexible microphone positioning; and corrosion-resistant contacts from the gold-plated XLRM-type connector.
ATM510 and ATM610a Specifications:
Polar Pattern: ATM510: Cardioid; ATM610a: Hypercardioid
Frequency Response: ATM510: 90 to 16,000 Hz; ATM 610a: 40 to 16,000 Hz
Open Circuit Sensitivity: -55 dB (1.7 mV) re 1V at 1 Pa
Impedance: 300 ohms
Weight: ATM510: 8.2 oz (233 g); ATM610a: 9.9 oz (280 g)
Dimensions: ATM510: 6.69" (170.0 mm) long, 2.11" (53.7 mm) head diameter; ATM610a: 6.97" (177.0 mm) long, 1.89" (48.0 mm) diameter
Output Connector: Integral 3-pin XLRM-type
Audio-Technica-style case: T6
Accessories Furnished: AT8470 Quiet-Flex™ stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
Information taken from official press release, for more visit Audio-Technica.
