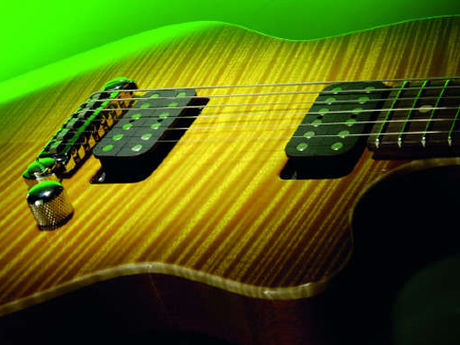

The latest model to emerge from Tom Anderson Guitarworks' Newbury Park workshop in California is the Atom, the guitar that Tom himself says he's always wanted to build.

It's the second original single-cut shape from Anderson after the electro-acoustic Crowdster. "It's derived from the Crowdster, but is smaller, has a tighter waist, is thinner and has more contours. The neck joins the body higher up and it incorporates the new neck joint," explains Tom.

"The world is pretty reluctant to accept new shapes, but this is something that's been rolling around in my head for some time."

Aside from the shape, the body is constructed from centre-joined mahogany with a relatively thin 5mm flat-flamed maple book-matched cap that's perfectly 'dropped' over the generous forearm contour. The natural edge is very cleanly achieved, and you've got more chance of spotting an alien in your local Starbucks than you have a blemish on an Anderson finish.

The glass-like sheen of the ultra thin finish (a thin combo of modern paint materials including an acrylic topcoat) is perfect on top, sides and back. The neck is one-piece mahogany (satin finished apart from the gloss headstock face) and uses the standard Atom shape (the same as the Cobra, see spec check).

It's a deep but beautifully-shaped profile - with a first fret depth of 20.7mm, and 23mm at the 12th with a slight V'ing. The Indian rosewood board is peppered with old-style 'clay' dots, and to simulate a worn-in guitar the edges are rolled - a properly radiused edge that feels so comfortable, especially for thumb-around styles.

Fretting is from special stainless steel wire designed to Anderson specification. There is a choice of sizes but the heavy, as fitted here (approx 2.72mm wide x 1.3mm high), is a perfect modern wire with plenty of height that doesn't feel over chunky. Needless to say the fretwork is perfect, especially the fret ends that are beautifully rounded.

The new neck joint is very clever. The neck profile described above stops just before it meets the body just past the 15th fret. It's then shaped with a flat bottom and two flat sides splaying out approximately 45 degrees. It fits into a mirror-image cut-out in the body and is held by two chunky bolts. It's impossible to move and there's not the slightest creak that you can usually illicit from a standard Fender style bolt-on.

"I've been thinking about a new neck attaching method for many years. The Fender-style joint, even when executed well, doesn't really hold the neck in position very well. Our joint is a compound wedge, so it requires no pressure at all to keep the neck in proper alignment. It cannot move sideways or longitudinally."

"I'd have used only one screw to hold it on, but the adjustable rod is in the middle of the neck so I used two bolts offset of the rod by about 6mm. The bolts are a size larger than the traditional wood screws used on our other guitars, and these are machine screws mating to steel threaded inserts inside the neck. There's actually more surface contact with this joint than the traditional Fender style, and with our production methods, the precision angles are easy to keep correct."
