Charvel San Dimas Style 2
The Southern Californian towns of Glendora and San Dimas, just 30 miles or so east of downtown Los Angeles, are inauspicious locations for an important shift in the electric guitar world.
Wayne Charvel set up what was to become a legendary repair and customising facility there in the mid-seventies, initially in San Dimas before moving to Glendora in 1980.
Although the name seems, on the face of it, to owe its existence largely to the skills of Wayne Charvel, it should be noted that the history books show that Grover Jackson did as much as anyone to keep the brand afloat back in the day.
We've on several occasions written of the time when a young Edward Van Halen walked into Wayne's repair shop in 1974 and put together an instrument from a Boogie Bodies neck and body upon which he'd go on to virtually reinvent the electric guitar, but it's the feel, the tone and the vibe that was inherent within the vast majority of guitars bearing the distinct logo of Charvel Manufacturing that caught the imagination of so many players.
"A Tele-type looks great when rocked-up in this manner."
It'd be fair to say that Charvel was the first company to popularise the idea of a wholly custom-made guitar for the rocking masses and, as was the prevailing wind in Southern California at the time, the more outrageous the design of your guitar the more likely your band was to be noticed.
Names associated with the brand read like a who's who of US custom building: there's Wayne and Grover, as well as Larry DiMarzio, Boogie Bodies' Lynn Ellsworth, Mike Eldred, and David Schecter.
If you can find an original 1979 'Prepro' model on Ebay, expect to shell out several grand; even original neck plates are topping £400!
Since Fender MIC bought the entire collection of Jackson/Charvel brands from Akai in 2002, players and fans alike have been waiting with baited breath for some affordable yet authentic revamps of the classic late-seventies Charvel hotrod. Now, finally, the release of these three USA Production Models represents an end to that wait.
Check out the San Dimas Style 2 in action in the following video, alongside the So-Cal Style 1:
"The Charvel is the hotrod guitar," says Charvel's Mick McGregor. "If you think about it, Charvel was the original blasphemy of the Fender Stratocaster.
"In the late seventies the major manufactures weren't addressing the needs of a key group of players: these guys were looking for faster, more comfortable necks. They were looking for Stratocaster bodies [loaded] with humbuckers.
"This was the birth of the original Custom Shop – Charvel. These instruments have a clear lineage to those early shred machines and the new USA Production Model Series comes with all the mods a player is typically looking for."
The new guitars comprise a pair of Strat-types, the San Dimas Style 1 and the So-Cal Style 1, plus this Tele-type San Dimas Style 2. As the original idea behind Charvel was to streamline and modernise Leo Fender's original designs to players' tastes, just how different are these from their obvious influences?
"There are large differences," says McGregor. "The edge radius [to the body], contours and overall size have been refined to the needs of Charvel players throughout the years.
"We gathered up countless Custom Shop guitars, some new, some old and we spec'd out the necks and bodies. We then pulled up the countless work orders going back to the late seventies as we were trying to find out what were the most requested specifications; two humbuckers, an alder body, a maple neck with a compound radius, a Floyd Rose and so on."
We'll get to the intricacies of the specs in a tick, but the single thing that lets you know that this is a real Charvel as soon as you pick it up (aside from that wonderfully simple logo) is the neck.
Made here from a single piece of quartersawn maple, the unblemished feel and sheer playability is similar to the £16,000 EVH Frankenstein Replica, which is no surprise, as that's pretty much the vibe these guitars are aiming for.
When Ed put the original together on the floor of Wayne Charvel's shop, this is what it must have felt like – and that's real history.
"You'll see subtle differences as a result of hand-sanding but, essentially, they're the same neck," explains McGregor. "This is because the neck is what makes a Charvel. The necks and bodies are hand-sanded and shaped after being pretty well defined on a CNC."
Each neck is the same and offers a 305-406mm (12-16-inch) conical radius and a slight pitch – the angle of the neck in relation to the body and bridge – for a super-smooth action: 1.78 degrees for this San Dimas model.

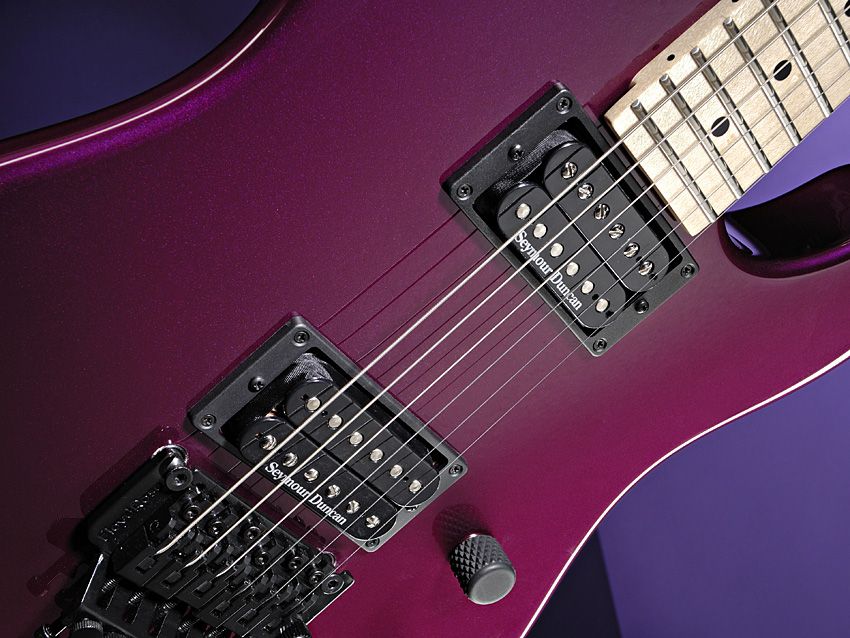

The guitar is loaded with two humbuckers, a Seymour Duncan Trembucker-spaced JB in the bridge position and an SH1n '59 at the neck, controlled by a three-way toggle switch and a single volume control.
Historians tell us that the very first Charvels were loaded with DiMarzio Super Distortion and PAF models, and then with Duncan models later on, which included the first examples of the now classic JB humbucker.
A perfectly set-up double-locking Floyd Rose is a prerequisite for most Charvels produced then and now, and the locking nut here is the version that can be screwed into the neck without the need for bolts that actually run all the way through the wood.
The over-the-top candy purple finish is also part of the style and Charvel intends to issue further loud and proud colours on later production runs, which will supersede and replace finishes that have gone before.
In other words, if you love the colour, you'll need to move quickly before it disappears back into the vault. It's an interesting ploy and your local Fender or Charvel dealer should be able to give you the precise ins and outs.
With a quality valve amp, especially one intended for rock use, we're happy to report that you can really hear the wood resonating through your speakers: our Mesa Lonestar has rarely had to deal with such heat.
For strumming, the SH-1n gives the San Dimas an efficient string-separation, while the Trembucker-spaced JB in the bridge has long been the pickup of choice for many rock players.
There's nothing here that suggests that'll change any time soon. It's full without being bloated, trebly without being overly zingy, and musical in the extreme.
The Floyd stays perfectly in tune as long as the strings have been strenuously stretched-in, and the neck plays just as nicely in battle as it does when you're idly strumming in front of the television.
If you were a UK-based rock guitar player during the eighties, you would have dreamt of perhaps one day owning an original Charvel. Well, that day has arrived and the only thing that separates this from an original model from 1978 is the unavoidable march of time.
The hotrod vibe, thanks to the stripped-down look and candy finish, is front and centre and, as we've said, the neck is truly a thing of wonder, the feel of which belies what is certainly a modest price tag.
A Tele-type looks great when rocked-up in this manner, and it feels slightly lighter than the Strat-shaped San Dimas Style 1. This ticks all the boxes for rock and pop styles, especially all-out wang-bar madness. Go wail!
Rock-Tele style. Great finish. Ultra-comfortable neck. Sounds.
Butchering a T-type electric may be considered heresy. It's not, it's evolution!
There's no chance of convincing as a country picker if you bring this to a gig - it rocks hard!
Country of Origin
3-way Pickup Selector Volume
Candy purple, Pagan gold, Candy red and black
Single-cutaway solidbody electric
305-406mm (12-16-inch) compound radius
Guitar Body Material
Original Floyd Rose double-locking vibrato, Grover Mini Rotomatic tuners, all black-plated
No. of Frets
Scale Length (Inches)
Scale Length (mm)
Seymour Duncan TB-4 Trembucker-spaced JB (bridge) and SH-1n '59 (neck)
