The proliferation of software effects has meant a serious decline in new hardware boxes, and rightly so, you might say. But if you're working in live sound or simply don't feel particularly enamoured with your software effects, a tidy little box of tricks is often the best bet. And if it's hardware you're after then you may as well go for a quality manufacturer like Lexicon.
Well respected for their fancy high-end stuff, Lexicon has for many years delivered good budget equipment too. With hardware prices seemingly at an all-time low, it's easy to underestimate just how good a budget reverb can be.

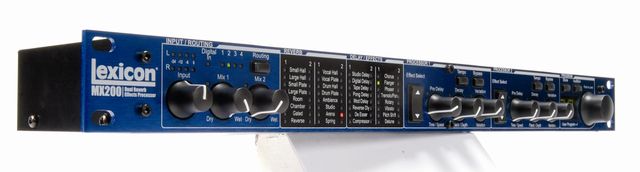

At £200 you may consider the MX200 to be just another addition to Lexicon's more affordable line (I'm thinking MPX110 and MPX550 here). You get a similar dual-processor set-up with 24-bit converters and S/PDIF operation.
However, what you're looking at in addition is a box that's been designed to better integrate with your computer. Using a standard USB connection, the MX-Edit software lets you edit and save programs on your desktop (or indeed back to the MX200 itself). And the included VST/AU drivers let you bring up the MX200 as a plug-in within compatible software packages.
As you would expect from Lexicon, the emphasis is on reverbs (there are 16 basic types included). But you'll also find delay and modulation effects, and dynamics courtesy of dbx, with 99 factory presets organised by category.
Like many dual-processor units, you can configure the signal routing in different ways. So in some cases the two effects will be independent of each other and in some cases not. It's worth bearing in mind that with a single stereo output, stereo signals get blended on the way out.
To keep things clear and simple, each processor gets its own front-panel controls, and the matrix indicates which effect is loaded into which processor.
Throughout the labelling, you'll find that green LEDs have been used to indicate processor 1, and red LEDs processor 2. Plus there's a useful audition button, which plays a selection of samples so you can test the patch you've loaded.
I think I've probably used all of Lexicon's reverbs over time, and I remain a fan of their mid-priced MPX1. Hardly surprisingly the style and character of the MX200 reverbs falls within those familiar boundaries.
So in addition to the more typical plate and hall algorithms, you get 'room', 'chamber' and 'ambience' for more up-close applications, with 'gated', 'reverse' and 'arena' offering more interesting spaces.
Overall these sound as you would expect. For me the shorter style verbs (ambience, studio and room) do good work, with the longer styles (large hall and plate) lacking the undesirable flutter you can get on reverb plug-ins.
Overall I think most of the reverb presets are too bright, and I found myself heading for the 'liveliness' control. On the subject of controls, they've been kept to an absolute minimum, with only three per effect (plus a tap-tempo).
This means that in the case of a reverb you're looking at pre-delay, decay time and liveliness. I would have liked some kind of low frequency cut too. Anyway, that's what you get, and with no hidden menus, simplicity has been favoured over flexibility.
The modulation and delay effects also do the job, with the chorus and phaser particularly pleasing. The dbx dynamics, although quite simple, add extra facilities you might not expect from an effects processor.
As mentioned, the MX200's USB connection allows two types of remote control. The first (MX-Edit) lets you edit and save programs from the desktop. No doubt a useful feature, but maybe a little wasted on a unit with so few controls. However, the second option, the VST/AU plug-in, looks more promising.
At first I thought this might be a complete USB solution, but you still need to connect the MX200 for audio, so you'll need some spare ins and outs on your computer (S/PDIF connections are perfect candidates).
Within your host software, the MX200 editor appears in the plug-ins list, and combined with the appropriate routing (see the box out), should be pretty simple to set up.
Try as I might I had unreliable results on my PC, but was successful on my Mac. One thing that is worth mentioning is that you can only access the MX200 from one source – either one plug-in or the stand-alone editor.
Once up and running everything seemed simple. It was good to see the MX200 settings loading with my song, and that I could automate parameters.
The MX200 will certainly interest many people purely because of its plug-in feature, but overall I get a sense that this is a bit of a halfway house. The USB function is good, but we should really be seeing audio and data running down that cable.
And as I've already said, you really don't need a desktop editor for such a simple box. But maybe given the price, I'm asking a little too much, and I don't want to detract from a box that is good value.
Even so, it would be nice to see reverb manufacturers employing the same sort of trick that Waves have with their APA boxes. Let's hope it's not too far away.
Good reverbs, modulation and delay effects.
Unreliable PC software editor.
An affordable yet good quality multi-effects unit with the benefit of software control.
All MusicRadar's reviews are by independent product specialists, who are not aligned to any gear manufacturer or retailer. Our experts also write for renowned magazines such as Guitarist, Total Guitar, Computer Music, Future Music and Rhythm. All are part of Future PLC, the biggest publisher of music making magazines in the world.
1/4 Inch Jack 1/4 Inch Jack (Balanced)
1/4 Inch Jack 1/4 Inch Jack (Balanced)
20Hz to 20kHz +/-1dB at 1kHz
Apple Mac Os X or later Microsoft Windows XP
Plug-in Formats Supported
