Solid State Logic X-EQ
Designed to run either on the SSL Duende Classic (10/10, cm105) or SSL's latest entry into the external DSP market, the all-new Duende Mini (see boxout opposite), X-EQ is a parametric EQ designed to combine "the best of the analogue and digital worlds". In practice, it recreates aspects of classic analogue equalisers but with certain qualities and characteristics that are only possible in a digital environment.
Getting the spec out of the way, X-EQ features much of what you might expect from an EQ plug-in and more besides. To take care of the bass and treble there are low- and high-pass filters with five different slopes and dedicated low- and high-frequency shelving filters. And the main guts of the beast? Six 'bell type' EQ bands, fully adjustable between 20Hz and 20kHz with highly tweakable Q, not to mention nine different bell shapes selectable per band, and a Parallel mode too (see boxout below). The amount of variation available from
the EQ shapes is too extensive to detail here, but in summary, there are symmetric and asymmetric shapes aplenty, and we couldn't devise a situation that they couldn't cover.

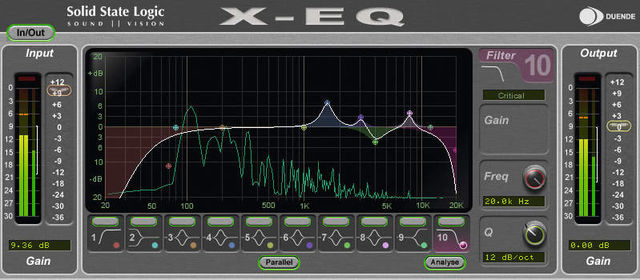

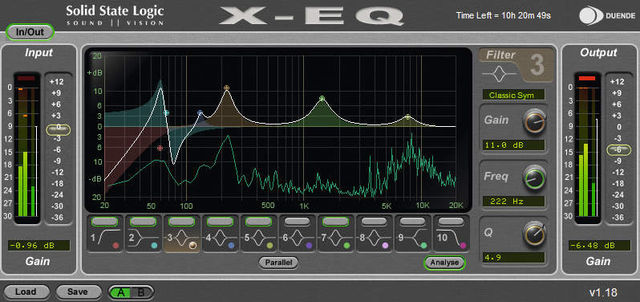

In keeping with all the other Duende plug-ins, X-EQ boasts excellent graphics that are easy on the eye,
and has lots of nice colour-coded touches. However, it'd be handy if the filter section automatically represented the last band activated - we kept inadvertently adjusting the wrong settings when tweaking!
Very handily, X-EQ features a real-time spectrum analyser that enables you to visualise the audio signal, and also pinpoint any irksome frequencies for attenuation or boosting. Since the analyser is post-EQ, you can also evaluate the effect that your EQ settings are having. One limitation is that the analyser doesn't have hold or RMS averaging functions, which would be very useful for isolating and displaying frequency 'trends' within source material.
Like most EQ plug-ins, there's an A/B function, but this would benefit greatly from a simple 'A to B' copy function, rather than us having to fiddle about saving and loading presets to achieve the same thing. On the upside, though, you can fully automate X-EQ in your host application - useful if conjuring filter sweeps is your bag.
While X-EQ isn't of a linear-phase design, SSL maintain that this is for sheer musical benefit, and that a non-linear phase EQ is more conducive to producing 'magic'. To get straight to the point, this is certainly the case here, for X-EQ has a sheer tonality and fidelity that sets it apart from most other EQs we've used. In fact, it can give uncannily similar results to that of a real SSL console - who'd have thought it?
At the end of the day, what most people want out of an EQ plug-in is musicality, versatility and functionality, but with a certain 'X-factor' that takes the sound above and beyond most others. With X-EQ, SSL have achieved this, and the minor niggles that we do have with it could very easily be accommodated in a future revision.
Famous SSL sound quality, Well conceived, functional and versatile, Parallel mode sets it apart from many EQs, Built-in spectrum analyser, Covers all musical bases
It ain’t cheap, Analyser lacks hold/averaging, No ‘A to B’ copy, Needs a Duende to run!
A couple of strange oversights aside, SSL’s expertise clearly shines through, as X-EQ is one of the best digital EQ plug-ins that we’ve had the pleasure of using
All MusicRadar's reviews are by independent product specialists, who are not aligned to any gear manufacturer or retailer. Our experts also write for renowned magazines such as Guitarist, Total Guitar, Computer Music, Future Music and Rhythm. All are part of Future PLC, the biggest publisher of music making magazines in the world.
Country of Origin
10 band parametric EQ with individually selectable EQ type per band. Intuitive user interface with drag and move graphic control, on screen knob layout, mouse wheel (& fine mouse) control and numeric editing. Bands one & 10 are High & Low Cut Filters, each with five different selectable topographies. Bands two & nine are Shelving EQ’s with proportional Q values. Bands three to eight are Bell Filters with 20Hz-20kHz range and nine individually selectable EQ types. Bands three to eight can be switched between standard series and parallel signal flow for classic graphic EQ style operation. Real time FFT signal analysis display. Stereo input and output metering with peak hold, separate RMS meter and dynamic range display.A/B facility for instant comparison of two different EQ set ups. Full parameter automation via any compatible host.
Stereo EQ plug-in for SSL’s Duende DSP system
Apple Mac OS X 10.4.10 or later Microsoft Windows XP
Low- and high-pass filters with five different slopes and dedicated low- and high-frequency shelving filters. Six ‘bell type’ EQ bands, fully adjustable between 20Hz and 20kHz with highly tweakable Q. Parallel mode. Real-time spectrum analyser. A/B function.
Plug-in FX Type
