Edirol FA-66

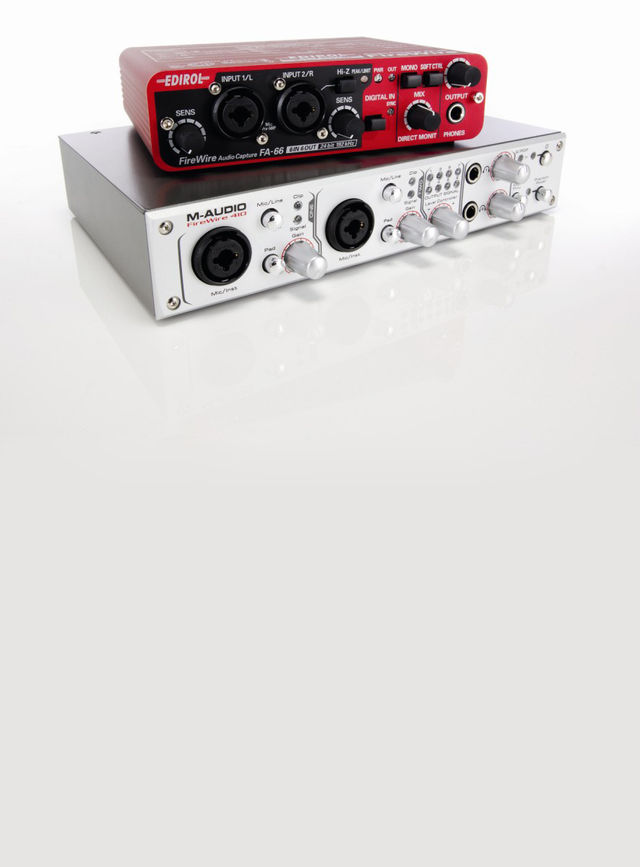

A compact portable firewire audio device that's ideal for the travelling music maker
The FA-66 is a compact, highly-portable audio interface which, when used in a four-In/four-Out configuration, offers 192kHz/24-bit audio.
Its dual XLR/TRS inputs feature phantom power – input two has a Hi-Z option for guitar or bass – and there are stereo RCA inputs at the rear.
You can apply an analogue limiter to the audio ins to combat clipping while recording. Optical S/PDIF I/O and MIDI I/O are also available.
Mac users will appreciate the FA- 66's plug-and-play capability – it uses the standard Apple FireWire driver, so you can hook it up and start recording.
XP users, meanwhile, are catered for by ASIO 2 and WDM compliance. You'll need a six-pin connection to power the device from the FireWire bus, but a mains adaptor is included if you have a four-pin.
Naturally, a unit of this size and price is going to be limited on features, but it does provide enough for basic recording sessions on the hoof.
It would ideally suit roving songsmiths, as well as those seeking a high-quality, computer-based field recorder in order to collect real-world ambiences and other sounds.
The FA- 66's metal case is robust enough to withstand a beating and fuss-free operation ensures it won't get in the way of the creative flow.
MusicRadar Rating
Pros
Sturdy construction. Straightforward setup. Compact.
Cons
Limited features.
Verdict
An entry-level fuss-free interface, which is ideal for the travelling songwriters on a budget.
Review Policy
All MusicRadar's reviews are by independent product specialists, who are not aligned to any gear manufacturer or retailer. Our experts also write for renowned magazines such as Guitarist, Total Guitar, Computer Music, Future Music and Rhythm. All are part of Future PLC, the biggest publisher of music making magazines in the world.
Specification
Weight (g)
652
OS Requirements
Apple Mac OS X 10.3.3 Microsoft Windows XP Home Edition Microsoft Windows XP Professional
Power Supply
Firewire Mains
Additional Requirements
Firewire Port
Supported Bit Depths
24-bit
S/PDIF in/out
Yes
No of Outputs
6
Supported Audio Drivers
ASIO Core Audio WDM
No. of Inputs (XLR Mic)
2
Phantom Power
No
Sampling Frequency
192 44.1 48 96
Description
The FA-66 is a 6-channel portable FireWire audio interface designed with the mobile recording and performance professional in mind.
Platform
MacOS/Windows
MIDI in/out
Yes
Interface
Firewire
No of Inputs
6
