Terratec DMX 6Fire USB
Aimed at all kinds of users, from musicians to gamers, the DMX 6Fire USB packs quite a bit into its relatively small case.

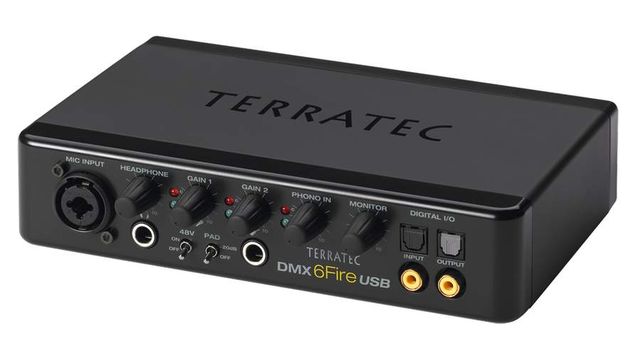

Connectivity-wise, you've got a combi jack/XLR mic input with phantom power, instrument jack input with gain control, RCA out with gain control, headphone out, four analogue RCA inputs and six analogue RCA outputs, plus MIDI and S/PDIF ins and outs.
Sonically, the quality is very good, and the unit can operate all the way up to 192kHz/24-bit.
The only issues we had were with the oversized power supply plug (the unit is not bus-powered), which may cause problems if using a multi-point power strip, and the restricted number of latency settings (just four) via the ASIO driver.
Furthermore, RCA connectors won't suit all users, and we feel that the DMX 6Fire USB is a little overpriced, too. You can get a more capable model for a similar sum, but still, this remains a quality all-round audio interface. TerraTec also say that OS X drivers are on the way.
Excellent sonic quality.
A tad overpriced.
A good audio interface but it faces some stiff competition.
All MusicRadar's reviews are by independent product specialists, who are not aligned to any gear manufacturer or retailer. Our experts also write for renowned magazines such as Guitarist, Total Guitar, Computer Music, Future Music and Rhythm. All are part of Future PLC, the biggest publisher of music making magazines in the world.
• USB 2.0 audio system • 1 microphone input with gain control (combo XLR/6.3mm jack) • 48 v phantom power • -20dB pad switch • 1 instrument input with gain control (6.3mm jack) • 4 analogue inputs (cinch) • 1 phono input (RCA cinch) with RIAA equaliser and gain control) • 6 analogue outputs (cinch) • Stereo to 5.1 surround expander • 1 headphone jack (6.3mm) with separate volume controller • 1 optical digital input/output (TOS Link) • 1 coaxial digital input/output (cinch) • 1 MIDI interface In/Out (5-pin DIN) • 24 bit / 192 kHz A/D converter with 114 dB (A) SNR* (input 1/2) • 24 bit / 192 kHz A/D converter with 105 dB (A) SNR* (input 3/4) • 24 bit / 192 kHz A/D converter with 114 dB (A) SNR* (outputs 1-6)
The DMX 6Fire USB, with tough demands on sound quality, is the perfect external audio system for musicians, DJs and gamers. This unofficial successor to the DMX 6Fire 24/96 has been completely reworked and has reached new heights: Instead of a PCI expansion card, it is now equipped with a USB 2.0 jack. Instead of 24 bits / 96 kHz, its engines now hum at 24 bits / 192 kHz.
