Vox AC30CC2X Custom Classic 2x12 combo
For its legions of devoted fans, the Vox AC30 will always be the definitive British guitar amplifier. Its sound comes from a mixture of many things: the EL84 cathode-biased power stage, oddball EQ circuit, transformers and loudspeakers all play a part in creating that unique Vox tone which has been a part of so many memorable signature sounds over the years. From George Harrison and Hank Marvin to Status Quo and Brian May, it’s all there.
However, in the modern world the AC30’s quirky features are something of an anachronism, frequently at odds with the needs of many players. How, then, do you update one of the world’s most iconic guitar amps without losing its traditional appeal?
A couple of years back, we saw a sign of things to come in the shape of the AC30HW: a limited production hand-wired amp with a traditional appearance but featuring a totally new circuit design that blends vintage and modern sounds and features to devastating effect.
With a lot of positive feedback from this toe-in-the-water, Vox has released the Custom Classic range – designed in England but made in China. The AC30CC is Vox’s new vision of what a modern production AC30 should really be like, combining vintage looks with modern features and a much wider range of sounds.

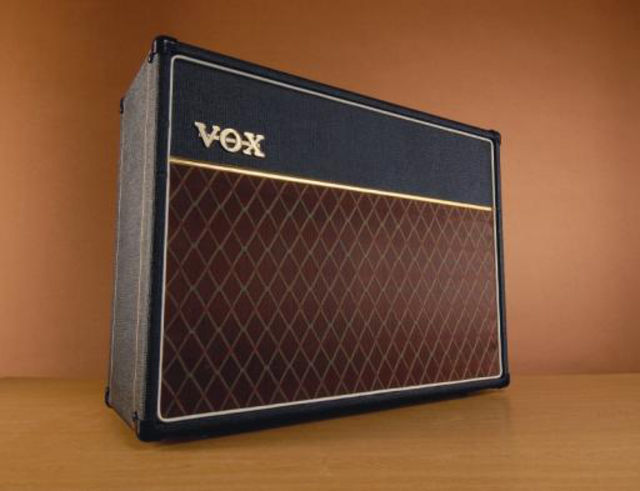

The AC30CC’s cabinet design hasn’t strayed from the original. Those who like the ‘big suitcase’ styling of this amp won’t be disappointed and the materials are decent quality too. Cabinet construction is up to a good standard and the traditional basket-weave vinyl is fairly well applied, with neat finishing around the tricky control panel area.
The chassis follows the original AC30 L-shape layout, with preamp valves mounted horizontally and power valves (including a GZ34 rectifier) mounted vertically. The electronics (including all the controls) are PCB mounted on a mixture of double and single-sided boards connected by neat wiring. Preamp valve bases are soldered into the main vertical PCB, while the power valves are hand-wired. Just like an original AC30, to replace any valve means taking the chassis out and you may also need a soldering iron to disconnect the speaker leads.

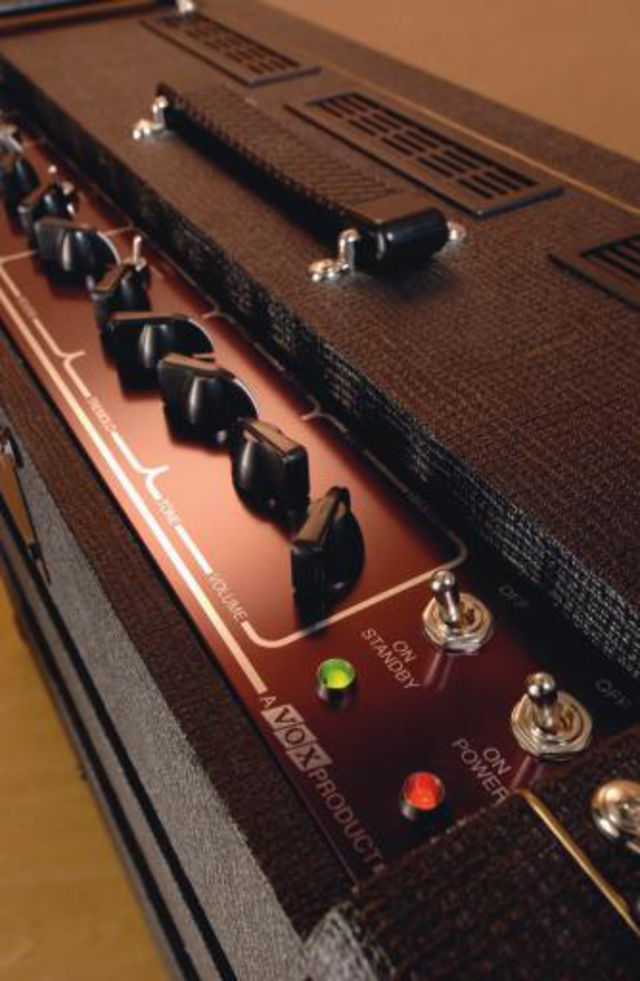

The Custom Classic’s controls are an interesting mix of old and new with a number of cool ‘boutique’ features. There are two input jacks – one for the normal channel and one for the Top Boost channel. Next to these is a small toggle switch that allows you to ‘jumper’ both channels together, replacing the patch lead many players use on standard AC30s, to thicken up the sound and widen the amps tonal range. The normal channel has a single volume control with a toggle switch marked ‘brilliance’ that adds extra highs.
Then there are volume, treble and bass controls for the Top Boost channel and another switch that allows you to swap between standard and ‘custom’ EQ types. As it was with the AC30HW, reverb is an integral part of the Custom Classic, featuring tone and level controls combined with a useful Dwell switch that varies the reverb circuit’s input level. Tremolo has been retained, with speed and depth controls, and finally there’s a master volume and the traditional backwards ‘cut’ control, which takes out highs as you turn the knob clockwise.

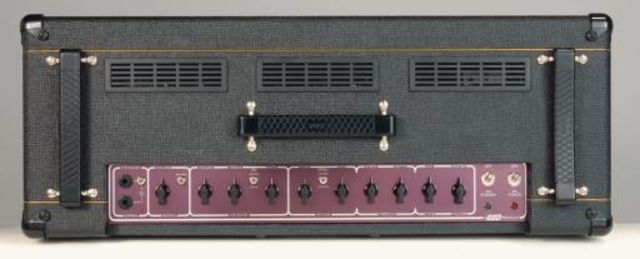

On the rear panel you’ll find jack sockets to hook up external speakers with an impedance switch. Next to this are two more switches with rather esoteric functions: one changes the EL84s’ cathode bias resistor values, giving you a choice of either the early four-input model’s 22-watt output with less headroom or the extended headroom and higher output (around 33 watts) of a six-input AC30. The other switch varies the smoothing capacitor values in similar fashion for a tighter or looser response.
There’s also a series effects loop with switchable levels to suit rack or stompbox-type effects, and a jack socket for the included footswitch, which enables you to toggle the reverb and tremolo effects.
There’s no doubting the Custom Classic’s sonic heritage – the glassy highs, slightly boxy mid-range and balanced low end so typical of the AC30 are just as they should be, while the Alnico speakers on this top-of-the-range CC2X version add that characteristic edgy sparkle. An original AC30 normal channel is somewhat ‘flubby’ and lacking in highs, and the Custom Classic reproduces this.
However, plug a decent treble boost pedal into this channel, wind up the volume and you’re as close as you can be to the Queen guitar sound… especially if you play a Red Special loaded with Burns Trisonics and use a sixpence for a pick!
Flipping the normal channel’s brilliance switch into action restores the highs for a rich, crystalline jangly rhythm sound that cranks out classic sixties pop riffs with consummate ease. The Top Boost channel’s capabilities are considerably widened thanks to the dual-range EQ switch that varies the control’s interactivity; being able to jumper both channels together fattens up the tone for a really thick lead sound.
Its gain range has sensibly been kept fairly modest so that at stage volume levels it’s easy to dial in a great overdrive tone that blends preamp and power amp distortion for maximum effect. The rear panel bias and smoothing switches act to fine-tune the amp’s response – you can use these to give the Vox a tighter or looser feel and vary the dynamic range.
The reverb is excellent. Being able to control tone, mix level and dwell really capitalises on the potential of this effect. The tremolo sounds great for low speed pulsing effects, although we felt that the LFO’s top speed could do with being a little faster.
Overall, it’s a far cry from the somewhat stiff and unforgiving nature of a standard AC30. This is one of those amps that makes you want to dig in, hit the strings hard and really
get into playing with all the nuances. Anything from vintage Beatles and Shads riffs to Queen and beyond is possible. The clever design means that this is an amplifier with a lot of versatility while the controls remain simple and intuitive to use.
The Custom Classic is definitely an AC30 for the modern player without any of the frustration that comes from using an original. The new circuit and controls make for a much more rewarding experience, and tonally it’s pretty much spot on.
Some might throw up their hands in horror knowing that this quintessential British amp is now made in China, but that makes it more affordable for many players and the build quality hasn’t suffered at all. In fact it’s much better than it has been in recent years.
There’s a lot of competition in this price bracket, but few manage to combine sound quality, features and looks with quite as much success as Vox has done with this amp – it’s a real achievement.
Range of sounds. Price. Build quality.
High quality sound, features and looks: Vox has hit the tonal bull’s eye.
All MusicRadar's reviews are by independent product specialists, who are not aligned to any gear manufacturer or retailer. Our experts also write for renowned magazines such as Guitarist, Total Guitar, Computer Music, Future Music and Rhythm. All are part of Future PLC, the biggest publisher of music making magazines in the world.
CABINET: Birch ply. Features: Channel jumper switch, Brilliance Switch on Normal Channel, Standard/Custom EQ Switch, Output Bias Switch.
Audio Output Power
Bass Master Volume Reverb Tone Cut Top Boost Treble Tremelo Speed/Depth Volume
Country of Origin
