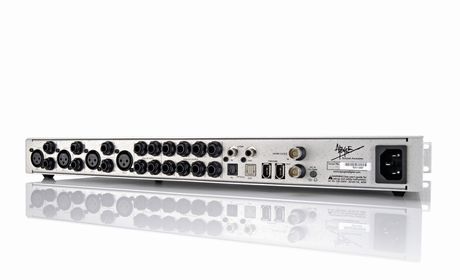

As well as optical and phono digital connectors, there's an additional FireWire socket.

1 of 3 » View in gallery

• Related News
• Review
• Manufacturer's Description

We first heard about the Ensemble about a year ago, so it’s certainly been a bit of a wait. But has it been worth it? The big selling point for the Ensemble has always been its intended integration with Apple Logic, but it’s worth pointing out that it’s also fully Mac OS X compatible (via Core Audio and its Maestro software). On the downside though, it won’t be a PC-supported product...

So what other features are tucked up its sleeve? The most significant is that it’s a completely digitally controlled unit. To elaborate, the two knobs on the front are multi-purpose encoders designed to drive the Maestro or Logic software control panels. It’s a simple enough concept (and one you’ll often see on MIDI controllers), though far less common for interfaces.

Combined with the many spot LEDs there’s plenty of visual feedback, which means you can use it without opening the software control panel (although some features can only be accessed from the software).

The spec

So aside from all the headline-grabbing stuff, what’s the bottom-line spec? First up, it uses FireWire (so installation is simple) and features 36 channels of simultaneous audio (18 in, 18 out). As is often the case for a FireWire interface, this comes as eight channels of analogue, eight ADAT and two S/PDIF.

The backside is packed with connectors, all of which are balanced and (aside from the mic inputs) are on TRS jacks. There are four mic amps/ inputs (digitally controlled from within the software), two of which have pre-converter insert points.

The first four inputs also have high impedance jack inputs (two on the front, two on the back). Inputs five to eight and all eight analogue outputs are on regular TRS jacks.

In addition to the optical and phono digital connectors on the back, you’ll also see word clock ins and outs (with a termination button) and one additional FireWire socket.

Physically, the only other things to spot are the two headphone outs on the front panel and the row of multi-coloured meters.

On the software front, settings can be made via Maestro or if you’re using Logic from within the Apogee Control Panel, it’s in the main ‘audio’ menu.

The graphics may be slightly different, but the settings (mic pre gain, clocking options and so on) are the same in both. There’s nothing to stop these two apps running together, and in use changing settings in one will show up in the other. The big upside to all this software control is that settings can be easily saved and recalled. In Logic they’re automatically saved with the song (but not automatically reloaded), and you simply hit the ‘recall setup from song’ button to get them back.

The one aspect of Ensemble that Maestro deals with exclusively is the hardware routing. With its connection matrix and software mixer you can route inputs to outputs, with level control, mixing in your DAW output too. Great for near zero-latency monitoring.
