Roland TD-11K Kit
Roland's flagship TD-30KV kit, was the first of the V-Drums to feature the highly acclaimed SuperNATURAL and Behaviour Modelling sound engine. Now Roland has produced two new modules which boast the same amazing sound technology and lightning-quick triggering response.
Each of the new modules have two brand new mid-range kits to partner them - the TD-11K (MSRP £1,000) and TD-11KV (MSRP £1,350) V-Compact kits (replacing the TD-4), and the new Tour Series with its TD-15K and TD-15KV kits.
"Roland has produced two new modules which boast the same amazing sound technology and lightning-quick trigger response"
This review features the slightly more affordable TD-11K, which, like the TD-11KV, is based around the new stealth-like black TD-11 drum module and MDS-4V rack system. As well as the latest sound technology, the module comes with a raft of facilities such as Rhythm Coach, USB ports, full V-Edit, user adjustable Ambience, Pre-set songs, Quick Record etc, readily matching the facilities of the TD-9.

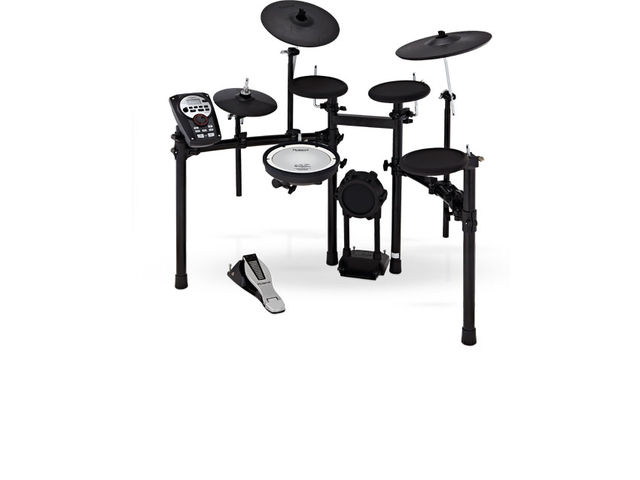

The TD-11K has a dual-zone PDX mesh pad for the snare and all-rubber models for each of the others drums. Though these upgraded PD-8A pads have the same super-fast 2.9ms triggering capabilities as the snare, they are single-zone and so lack the rim-shot capabilities of the mesh-head.
Both rack arms of the MDS-4V are a standard length but the centre 'H'-frame crossbar is much shorter (around 25cm across), creating a sort of triangular-shaped rack and reducing the footprint. The drum stand is the same as used on the TD-4 V-Compact Series kits but, with that set-up the TD-4 drum module was perched in the middle of the actual 'H'-section crossbar. This seemed particularly odd as much of the module was obscured by the two small toms and mid-performance access was less than ideal.
In keeping with most of the other V-Drum kits, Roland has the module attached on the far left of the rack and just below the hi-hat pad.
The plucky little KD-9 kick, while not quite as grandiose as on the TD-30KV, is extremely sturdy and able to slot perfectly in between the two centre rack posts. The head itself is made from a beater-resistant woven cloth with just the right amount of impact-absorbing padding to allow a decent pedal response. Fans of double-pedals will be pleased to know that the kick pad is designed with twin beaters in mind and the pedal clamp bracket itself is wide enough to allow the perfect alignment for both beaters.
"The TD-11 controls make any editing quick and virtually fool-proof"
Purposefully designed for quick and easy access, the TD-11 controls are located within easy user reach and come in all shapes and sizes, depending on importance and ease of use. Selecting a kit, for example, would be either via the familiar value wheel, which gives rapid selection through any of the menus and screens or, step-by-step with the large incremental Drum Kit buttons.
Most functions are as difficult as pressing a button to either start or stop the metronome or song player, for example. A single button press is all that is required to enter the Quick Rec mode but this requires a single hit on the pad or a key press of the 'Play/Stop' button to initiate the recording. The three push-buttons, below the LCD display, align with the icons displayed on the various editing menus, which makes any editing quick and virtually fool-proof.
There are two types of USB sockets on the TD-11 (both located at the rear of the module) - one is a Type B socket, specially designed to allow connection to a computer (Mac or PC) where the TD-11 is recognised as an audio input/output device as well as a means of communication.
The other USB socket is designed for a memory stick or flash drive with which the user can back-up the TD-11 or load up with MP3s or WAV song files to play on the TD-11. Previously, the TD modules with this facility could only access songs if stored within the root directory of the drive. Now all song data can be organised into folders (creating albums perhaps), where each folder can contain up to 100 individual songs.
As a learning tool, the TD-11 is extremely well-equipped, having a coaching facility which, after the user-defined warm-up, helps get your wrists loosened-up for the various practice routines and challenges such as 'time check' which pits your sticks against the often-feared metronome, producing a score at the end of each exercise.
Then there's the 'quiet count' which drops-out the metronome for various time periods and awards a percentage score at the end of the sequence - a great way of instilling a sense of time into your playing. Other exercises and further coaching facilities are available via the excellent and highly recommended DT-1 V-Drums Tutor software which is available as a separate purchase for around £49.
"The kick pad is designed with twin beaters in mind. The pedal clamp bracket is wide enough to allow perfect alignment for both"
Real-time changes to whole kits or individual kit voices proves an easy task, thanks to the clear icon-driven menus. The combination of the intuitive display and well-placed controls means any last minute changes can be made on the hoof. Take swapping a snare over, for example: press Menu; strike the pad to change and select the new drum with the value wheel; press the Exit button - new snare, simples!
The overall sound from the module is impressive. The triggering is quick - certainly as quick as we can play and, though you can't create rim shots and additional sounds on the toms, the facility still exists on the snare.
A Roland V-Drum kit with a next generation sound engine for the likely street price of under a grand has to be good news. However, we prefer the response and extra facilities offered with the wrist-friendly mesh heads of sister model, the TD-11KV, so if you can afford it, the extra £350 for the upgrade would be money well spent.
Great sound. Double-pedal-friendly. TD-11 unit is well positioned and has an intuitive interface.
Sounds suffer slightly on rim-shots.
A no-nonsense compact kit solution which, despite its compact size, remains capable, commendable and sounds great.
All MusicRadar's reviews are by independent product specialists, who are not aligned to any gear manufacturer or retailer. Our experts also write for renowned magazines such as Guitarist, Total Guitar, Computer Music, Future Music and Rhythm. All are part of Future PLC, the biggest publisher of music making magazines in the world.
DB-25 connector, 1 x additional trigger input (CRASH2) 1⁄4" jack, Out R and L/Mono 1⁄4" jacks, MIX IN (stereo miniature phone type), MIDI Out (5-pin DIN), USB Type A (Computer), USB Type B Memory
SuperNATURAL sound generator with Behaviour Modelling; Dual-zone PDX mesh pad snare
