The Yamaha MW12 is as straightforward an analogue mixer as you're ever likely to use.

The MW12 has twelve channels of input, EQ, and a sneaky USB port round the back, pre-loaded onboard drivers and a bundled copy of Cubase LE for PC and Mac, all of which means you can be using this desk to directly feed audio into your computer within ten minutes of it being unpacked.

Overview

The MW12's channel strip is straightforward and familiar. At the top, you'll find a Gain control with peak light. Also at this stage, an 80Hz highpass filter option allows you to lose any inherent noise from, for example, mic proximity or electrical interference.

Under this, a 3-band EQ is provided, with fixed base frequencies for these at 10kHz, 2.5kHz and 100Hz and up to +/-15dB of cut/boost available.

Two auxiliaries also grace each channel, as does a channel On button, a PFL solo switch, a Routing button to allow signals to reach groups 1-2, plus pan and level controls.

The fader is a 70mm affair with a smooth action, which is by no means a given for a console of this size and price. Well done Yamaha.

The EQ too, is useful. We suppose the only real concession to price is that the mid-range isn't sweepable. Financially, this does make sense, but we still get a little nervous without that control. It's a long way from 100Hz to 10kHz.

Still, the EQ does sound very clean, and as most people will be using this desk primarily as a means to get sound into their computer, we wouldn't have thought that radical EQ work would be called for too often.

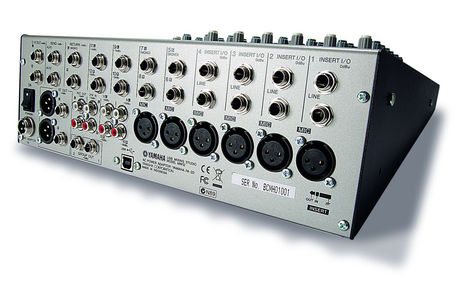

All connections are made on the back panel (except for the front-mounted headphone port) and here you'll find that channels 1-4 are set up as true XLR mic, 1/4-inch line mono strips. Inputs 5/6 and 7/8 are switchable, either to serve as mono XLR ins, or as stereo line ins, with channels 9/10 and 11/12 fixed as stereo line ins.

Channels 1-4 also feature an insert port, while elsewhere you'll find the two aux send outputs, stereo return, stereo control room outputs, main stereo outs (either via XLR or TRS line jacks), Rec out (to DAT or Minidisk, for example), two-track inputs and outputs for Groups 1-2. The power inlet and all-important USB connector complete the puzzle.

In use

As with everything on this little mixer, the clear layout and unfussy approach means you'll be connected and up and running in no time. There's onboard phantom power too, though be warned there's just a single switch for this for all channels. Sensibly, it's been mounted on the front, so you're not reaching round the back for access.

Even with dependable protocols such as USB and FireWire now the established hubs of our studio, we still expect to have to install drivers for most gear we choose to hook up to our main DAW. Not so with the MW12.

It comes preloaded with drivers for Mac OSX and Windows XP, so setup really is as simple as connecting a USB cable to your computer, and then choosing the appropriate driver from the list that appears in your sequencer.
