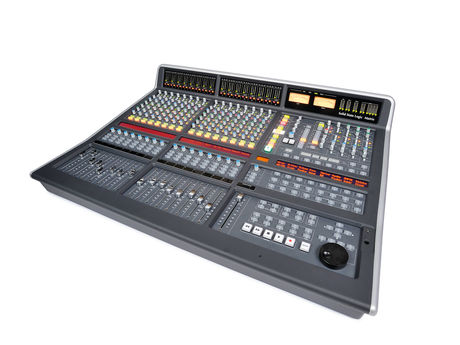

The Matrix can operate in Analogue and DAW modes.

1 of 3 » View in gallery

• Related News
• Review
• Manufacturer's Description

Manufacturer's description

Headroom < +26dBu @ 1kHz (< 1% THD)

Line In to Direct Out Frequency Response ±0dB at 20Hz, +0/-0.1dB at 20kHz, -1dB at 80kHz Noise < –89dBu 20Hz

– 22kHz

THD < 0.002% @ 1kHz (+24dBu, 22kHz filter)

Line to Aux Buss Out Frequency Response ±0dB at 20Hz, +0/-0.1dB

at 20kHz

Noise < –93dBu (no channels routed) < –76dBu (all channels routed, faders at 0dB)

THD < 0.002% @ 1kHz (+24dBu, 22kHz filter)

Line To Mix/Rec Buss Out Frequency Response ±0dB at 20Hz, +0/-0.1dB

at 20kHz

Noise < –89dBu (no channels routed)

< –77.5dBu (all channels routed, faders at 0dB, pan at centre)

THD < 0.002% @ 1kHz (+24dBu, 22kHz filter) Audio Connections

All analogue connectors with the exception of the mini monitor feeds are on 25 way D-Sub connectors. These handle 8 inputs or outputs each:

> 16 DAW Returns

> 16 Channel direct outs

> 16 Line inputs

> 16 Insert sends

> 16 Insert returns Record, mix and cue stereo insert send

and returns

Cue stereo and FX sends 1-4 outs.

FX Returns 1-4

Record, mix and follow monitor stereo outs.

Main monitor and artist Monitor outs.

Stereo external source inputs.

The mini monitors left and right outs are on XLR's Digital in and out.

AES in and out on XLR's Optical S/PDIF in and out. The rest

> Ethernet connector

> USB connector

> 9 pin D-Sub to connect to the X-Rack.

> Mini-Jack input on the front of the console to connect an MP3 player
