Though initially confusing, the AX 100 MkII is simple to use

1 of 2 » View in gallery

• Review
• Manufacturer's Description

The Axon MIDI guitar controller is a clever piece of kit that enables you to convert a guitar's signal into digital sound.

Using an Axon pickup or a supported third-party one, your guitar's signal is fed to the Axon AX 100 controller. Here, it's converted to MIDI and fed to a built-in sound module and (via the MIDI Output) your computer.

Axon's system is unlike anything else on the market. Typically, MIDI guitar systems work like guitar tuners - they 'listen' to the sound and work out its pitch. This might seem like an obvious approach, but the time taken to detect the note is far too long.

Axon's system works more like a submarine's sonar than a guitar tuner. By listening to the reflection patterns of the guitar pick as it travels up and down the string, Axon can determine the length of the string and therefore its pitch.

Axon can also detect the position the pick was at when it plucked the string. This all happens straightaway, ensuring that latency isn't an issue.

The original Axon system was a revelation, but the MkII update brings improved firmware, a brand new soundset, PC and Mac control software and a 'guided tour' DVD.

The Axon AX 100 MkII can be bought as an upgrade kit, or as a new 19-inch rackmount module. Not all previous Axon units can be upgraded to MkII - only the ones with a large Display Contrast knob are compatible. Unless you have experience of replacing EPROM chips, we recommend that you get an experienced hardware engineer to perform the upgrade.

To use the AX 100 MkII you'll need to buy the correct type of guitar pickup. Axon's own model - the AIX 101 - must be mounted less than 20mm away from the bridge saddles or it won't work properly (we tried it). As such, the AIX 101 won't suit all guitars and you may have to buy a different type of pickup.

To test if you've got the pickup positioned properly, you just need to see how well it works with the AX 100. If the position isn't quite right, the chances are that you'll have problems, with the G-string in particular.

Once the pickup position is correct, though, the accuracy and speed of Axon's note tracking is incredible - if you're not getting excellent results, you can be pretty sure that it needs changing.

Getting to grips

When you first power-up the AX 100 and start playing, you'll hear the slightly embarrassing sound of a grand piano (playing piano on a guitar feels like an unnatural and shameful act).

Once you start exploring the controls, you'll probably come unstuck pretty quickly, as the front panel of the AX 100 is - even by rackmount standards - pretty arcane. The manual doesn't help either, as it has no holistic overview.

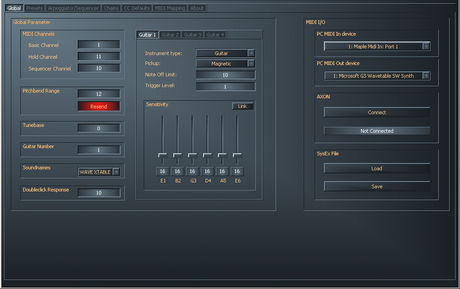

To remedy this situation, all you need to do is hook up Axon's MIDI ports and install the new editor software. When you flick through its pages, the configuration and operation of the AX 100 become obvious.

Through this new software, the power of the Axon system is both revealed and simplified. You learn that splitting the guitar by fretboard and pick position puts 12 sounds on the guitar simultaneously, and that you can have a completely different sound (played as a sustained chord pad) underneath everything else.

You're also able to tweak things - such as the reverb levels or filter cutoff - as you play. All you need to do is pick in the relevant places.

As you discover these features, you realise that the Axon is certainly no toy or gimmick. It's an advanced musical instrument in its own right.
