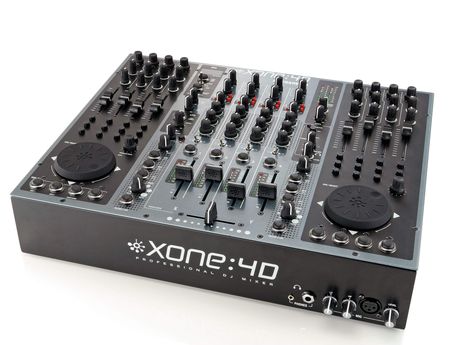

Not all DJ mixers are created equal and proof is here in the form of the rather luxurious Xone:4D.

Allen & Heath pioneered the hybrid DJ mixer concept with the Xone:3D. Since then, a horde of well-specified competitors has emerged to compete; so it's time for an update.

The 'hybrid' concept merges together audio, MIDI control and digital audio card technologies; enabling DJs to mix using any combination of decks and software, especially Ableton Live and NI Traktor.

Build

On the surface, the 4D looks like a 3D with the addition of a nice metallic-black paint job. The layout of controls is essentially the same, with a creamy four-channel analogue mixer in the centre flanked by a pair of MIDI control surfaces.

We've already heaped plenty of praise on the stellar qualities of the A&H analogue console, and this mixer continues the tradition in fine form.

There have been some minor changes to the MIDI control section, which aren't initially obvious. First up, there's more space around the dials, which were a bit cramped on the original 3D models.

Connections

Probably the most significant aspect of the upgrade is the all-new connection configurations. It still uses the USB 2.0 connection, but it now boasts a very flexible 10-in/10-out configuration.

These are arranged as stereo pairs, the first four of which are available at the touch of a button on the mixer's line selector, as well as analogue outs on the rear.

This is a big change from the 3D, which required the user to call up the software-based mixer on the computer to make any changes to the configuration.

The recording inputs are fed by the four stereo analogue inputs of the DJ mixer, which offer a choice of either RCA or phono connectors.

Alternatively, you can tap the signal from the FX sends, mic input and master output instead of the line inputs. The final pair (9+10) uses the digital in/out.

This flexible set-up makes it possible for users to bend the Xone:4D to their needs, rather than work around its architecture.

Sound

The sound quality is crisp, clear and rounded out by the analogue circuits of the mixer, with the warm three-band EQ and multi-band filter section adding to the appeal.

The driver performed well on the test MacBook and could easily sustain playback at the minimum of 64 samples, with each audio track routed to its own analogue output on the mixer and all playing simultaneously. Performance-wise, this is about as good as latency values get.

There was no sign of crackle or buffer glitches, just a tight response for audio triggering and premium sonic integrity – impressive!

Filters

In the world of DJ mixers, Allen & Heath is synonymous with juicy analogue filters. In the years since they were first introduced, A&H have tweaked their filters to perfection.

There are two individual VCF's onboard, and these are assignable to the X and Y channels of the cross-fader. Each one has a choice of low-pass, band-pass and high-pass modes, plus rotaries for cut-off and resonance.
