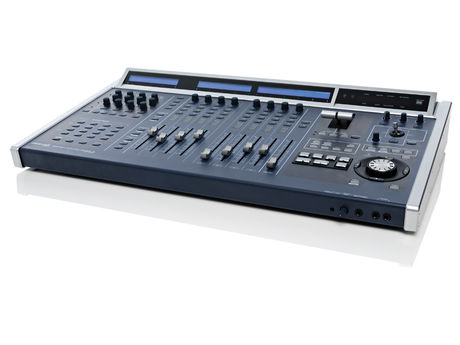

The VS-700C is a truly professional control surface.

View in gallery

• Related News
• Review

V-Studio. The name is familiar, and the logo more so, for this is a collaborative effort between Cakewalk and its parent company Roland, who started pumping out standalone, hard disk-based V-Studios over a decade ago.

Thankfully, things have progressed in the interim, and most of us are now using computer-based systems, and thus the V-Studio 700 is a hardware front-end for Cakewalk's Sonar DAW (Sonar 8 Producer edition is included in the standard package).

It feels like a Roland product through and through, from the sleek styling of the console's controls to the built-in Fantom VS synthesiser, complete with an ARX Series expansion slot.

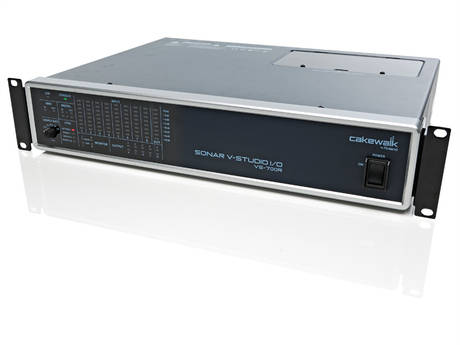

The V-Studio 700 consists of two integrated hardware devices: the rackmountable VS700R and the expansive VS-700C console. The former houses the Fantom VS hardware and provides the system with plenty of connectivity.

In detail

Overall, connectivity includes main and sub (as in secondary, not subwoofer) monitor outputs via stereo pairs on XLR and 1/4-inch jacks respectively; two headphone outs; 10 line outs on 1/4-inch balanced jack; and eight inputs, each available as an XLR or 1/4-inch jack, with its own preamp (including per-channel phantom power) and digital compressor.

There's also word clock, AES/EBU and S/ PDIF I/O, as well as a pair of optical ADAT ports and MIDI In and Out sockets. Connection to your computer is via USB 2.0.

The VS700C console connects to the VS700R with a locking cable and is a thoroughly pro control surface with three backlit LCD strips and a 7-segment LED display across the top to give visual feedback.

A bank of nine assignable, 100mm motorised faders (one is for the Master channel) occupies the central area. Each of the channel faders naturally has accompanying mute, solo and arm buttons. One slight annoyance is that direct monitoring has to be configured through software rather than using the VS700C, though Cakewalk says this is to be addressed in a future update.

"Transport controls include a jog/shuttle wheel and a T-bar throttle that would look at home in the transporter room on the Starship Enterprise."

There are gain pots for each headphone out and one for the sub/main monitor level, with switches to optionally send the sub signal to the phones, and to mute the monitor out. Such touches illustrate that Cakewalk sees the system as the hub for a pro recording setup.

Transport controls include a jog/shuttle wheel and a T-bar throttle that would look at home in the transporter room on the Starship Enterprise, with buttons to select its current function: front-to-rear balance in surround setups; control of an ACT parameter; or the opacity of Sonar's X-Ray feature. Additionally, there is a surround panner joystick.

To the left of the channels, you'll find the Channel Strip Control panel, which harbours 12 pots that can provide control over EQ, send or ACT parameters (ACT is basically Sonar's 'automap' functionality). The knobs remap and the LCD screen shows the relevant labels and values.

The Access Panel resides just below the Channel Strip Control section, and offers instant, mouse-free access to common functions; for instance, you can call up the Piano Roll, the Console View or the Synth Rack. Edit functions such as Cut, Fade, Split and Delete are also here, along with access to your markers.

The modifier keys add another four layers of functionality, and there are dedicated buttons for Save, Undo (or Redo, if you hold Shift), OK/Enter and Cancel.
