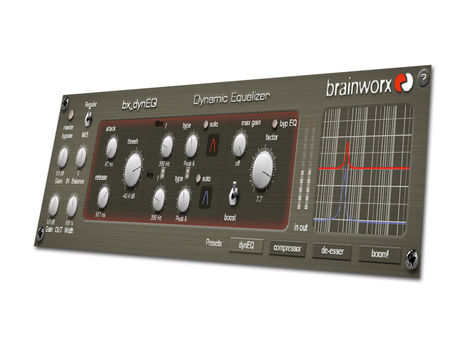

The BX Dynamic EQ is less daunting than it might at first appear.

1 of 3 » View in gallery

• Review

The Dynamic EQ bundle comprises two effects: Boom! and BX Dynamic EQ.

Both plug-ins are dynamic EQs but come in very different forms. BX Dynamic EQ is the fully-featured design with a multitude of parameters and 'starting-point' presets for dynamic EQ, de-essing, compressing and kick drum processing.

Boom! on the other hand is a cutdown, two parameter version of its sibling aimed solely at boosting or cutting kick drum punch. In keeping with the M/S (Mid/Side) concepts it's already developed, it shouldn't surprise you to hear that BX Dynamic EQ also incorporates an M/S mode.

In detail

So what differentiates the BX Dynamic EQ from its simpler sibling? On the face of it, loads of controls, but if you keep in mind the basic concepts of dynamic EQ (think of a de-esser), then the interface is less daunting.

The central panel is divided into three sections dealing with dynamics, filter type and effect level. The dynamics section – threshold, attack and release – deals with the point at which processing starts and how that occurs (the attack and release).

The Level section to the right lets you choose either cut or boost and select a maximum processing limit (0dB to 12dB). There's also a factor parameter, which you can think of as a bit like a compressor ratio (values range from 1 to 11).

So these are the basic settings, but the real action goes on in the Filter section. First up, you'll notice it has two sections (Filter and Key) providing independent control over trigger frequencies (Key) and the frequencies they act on (Filter).

Beyond this, there's also control over filter type (24 in total) including peak, band-pass, low- and high-pass filters and shelving.

In many situations you'll want Key and Filter settings to be the same, and you can link frequency, type or both to achieve this quickly. Even so, the option to select them individually is enormously flexible.

So far, so good – but there's yet another layer to BX Dynamic EQ concerning M/S processing. Among the master settings to the left you can choose between stereo and M/S mode.

In stereo mode you get one set of controls to process left and right signals equally. However, switch over to M/S mode and the plug-in doubles in size, providing individual controls for the mid and sides.

Finally, you'll note that whichever mode you use, there's also an overall Width control (mono to 400%) indicating the underlying M/S roots of the plug-in.

BX Dynamic EQ includes four 'starting point' presets (dynEQ, compressor, de-esser and boom!). For example, the de-esser setting has a high key frequency (12kHz) with a sharp peak, but applies a softer peak at a lower frequency (7kHz) to the signal. The level control is set to cut with a factor of 11, but with max gain of 6dB.

If this all seems a bit confusing, the graphic display to the right puts it into context. Here the key filter is blue, the limits are yellow and the actual reduction is shown dynamically in red.
