The MasterControl features enough control and audio options to satisfy the majority of producers.

1 of 3 » View in gallery

• Review

The audio interface is an essential piece of kit for most musicians, and if the one you favour doesn't come packed with nice-sounding mic pres, you might need one of these, too.

If you happen to have one trusted 'external' synth you might also need a MIDI interface, and if you're one of the many who hates mixing with a mouse, a control surface might go on your shopping list, too.

As manufacturers have become more savvy to our needs, hybrid units offering some or all of these requirements in a single box have sprung up. The latest of these is Alesis's MasterControl, which offers a FireWire audio interface with I/O options aplenty, a control surface with long-throw faders plus a series of monitor configuration options to keep larger studios happy.

With a retail price of just under £900, the MasterControl seems to offer more than reasonable value for money, but is it too good to be true?

Overview

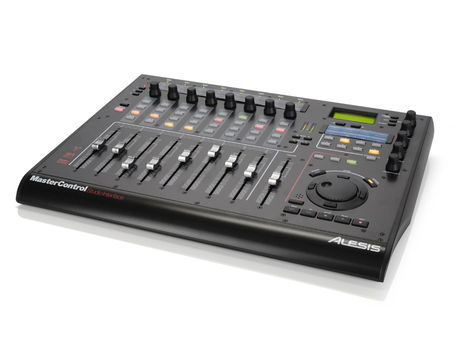

As you can see from the pictures, the MasterControl is a medium-sized control surface 'wedge' which slopes gently downhill from back to front. The top surface concerns itself with the comprehensive control options (more on these shortly), while the back panel acts as the unit's patchbay.

There are two XLR/line input combi ports with insert points for each to accommodate your channel strip processor of choice, a phantom power switch and Gain dials for each input. Beside these, a further six line inputs are offered alongside six line outputs, provisionally organised into three separate stereo monitor configurations.

Two independent headphone ports come next, alongside MIDI In and Out ports and the MasterControl's digital options, which include an ADAT connector, a configurable port that can accept another set of ADAT signals or optical S/PDIF signals and, lastly, a dedicated S/PDIF port.

Comprehensive though this is, all digital connections concern themselves with input alone – the unit features no digital audio outputs, which comes as a slight surprise.

Two FireWire 400 ports and the 9V DC power supply complete the line-up, which in the main is nicely organised. Two frustrations prevail on the back panel, however. Despite fairly generous I/O, the provision of only two mic preamps seems a strange decision in light of fact that the MasterControl's main competitors are much more adequately endowed in this regard.

Secondly, the design and positioning of the Gain dials for these inputs on the back panel represent a bad decision. While we can understand the logic in keeping these next to the inputs themselves, the dials are too small, they're hard to access and they're extremely fiddly to adjust without either leaning over the back of the unit or rotating it, all of which negates the option of fixing the MasterControl somewhere permanent.

It would have made more sense to place these dials on the top panel, where there is ample space.

Control

Connections aside, the top panel is where the action happens. Once you've installed Alesis's driver, it's a simple matter of selecting your DAW's relevant preset and, within your host software, setting up the MasterControl as a pseudo-Mackie Control before you're away (or HUI if you're a Pro Tools-er).

There are presets for Live, Reason, Cubase/Nuendo, Pro Tools, Logic and Digital Performer among others and, as you'd expect, choosing the relevant one means that the control surface switches all produce meaningful results from the off.

The lower section of the front panel contains nine long-throw faders, which control eight channels and the master fader of your DAW. The faders feel good, with a decent amount of resistance and very little side-to-side wobble.

Above these, each channel features four buttons with Channel Select, Record Arm, Solo and Mute buttons, which speak for themselves. To the right, Bank and Track Up/Down buttons allow you to access the following or previous bank of eight faders, or the next/previous track respectively.

At the top of the unit, each channel also features a rubber rotary encoder that can perform one of three functions, as selected by the buttons to their left. The MasterControl is programmed with different functions per DAW preset, and a collection of detachable plastic strips is provided so that you can affix the relevant default controls to the MasterControl for easy reference.
