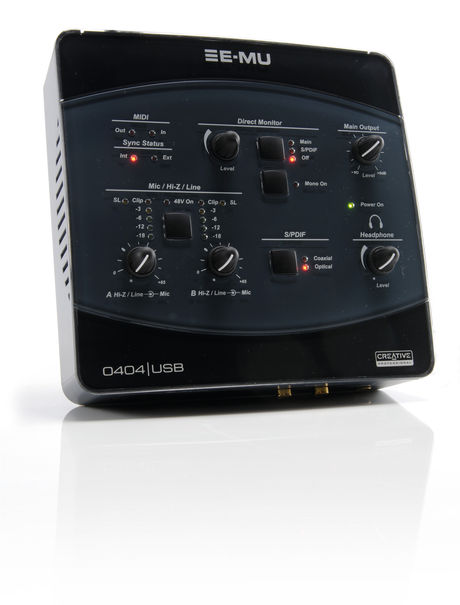

The hardware is a slightly large desktop box.

1 of 3 » View in gallery

• Related News
• Review
• Manufacturer's Description

It’s a sure sign that laptop recording is becoming big business when almost all of the audio interfaces landing on our reviews desk are USB or FireWire. It wasn’t so long ago that PCI-based models were dominant, but new ones are something of a rarity now. One interface that is PCI is E-MU’s 0404.

Sure enough, though, the company have now seen fit to launch an external version that - as its name suggests - operates over USB 2.0. At launch, this was PC-only, but beta Mac drivers were released just as we went to press.

Features

To what level the 0404 USB 2.0 is comparable to its PCI sibling isn’t really clear - it may be in name only. The external version certainly doesn’t come with E-MU’s PatchMix routing software or any hardware DSP-assisted effects, though both were features of the PCI model. The hardware itself is a slightly-larger-than-expected desktop box with input connectors at the front and output connectors at the rear.

There are only left and right (balanced) analogue outputs, so if you’re into surround mixing, this isn’t the interface for you (unless you’ve got a digital AC-3 decoder). The inputs are presented as Neutrik combo jacks, which offer microphone, instrument and - surprisingly - balanced line inputs for both the left and right channels. Professional-standard connectivity, in other words.

The front panel boasts a 1/4-inch headphone jack too. We can also celebrate the return of a couple of long lost friends: coaxial and optical digital connections. This is quite a surprise, as it’s been a while since we’ve seen them on an interface of this type. We have to ask, though, what might you connect them to? Both CD and DVD players are now built into our computers, and most other digital hardware equipment (reverbs, samplers, etc) has been emulated satisfactorily in software. That said, the digital I/O might be a selling point for people who have DAT machines, MiniDisc players or similar gear that needs hooking up.

One thing we should make clear, though, is that it’s the digital connectivity that affords the 0404 its 4-in/4-out technical specification. If you aren’t going to make use of this - and let’s face it, most of us won’t - the 0404 USB 2.0 is therefore, to all intents and purposes, only a 2-in/2-out audio interface.

Good points

MIDI I/O and a small mini-jack for desktop computer speakers completes the connectivity, but there’s also a socket for a power supply. Sadly, the 0404 USB 2.0 is not bus-powered, so if you fancy a spot of battery-operated recording in remote areas, you’ll be left disappointed. On the plus side, the mains adapter does have the benefit of being unusually lightweight and so wouldn’t add any significant load to the mobile musician’s rucksack.
